Rod Reinforced Conveyor Belt
Rod reinforced wire conveyor belt family with RR and RRW designation formats and source-listed nominal weights for food processing, heating, cooling and transfer systems.
Rod Reinforced Conveyor Belt: geometry first, application second

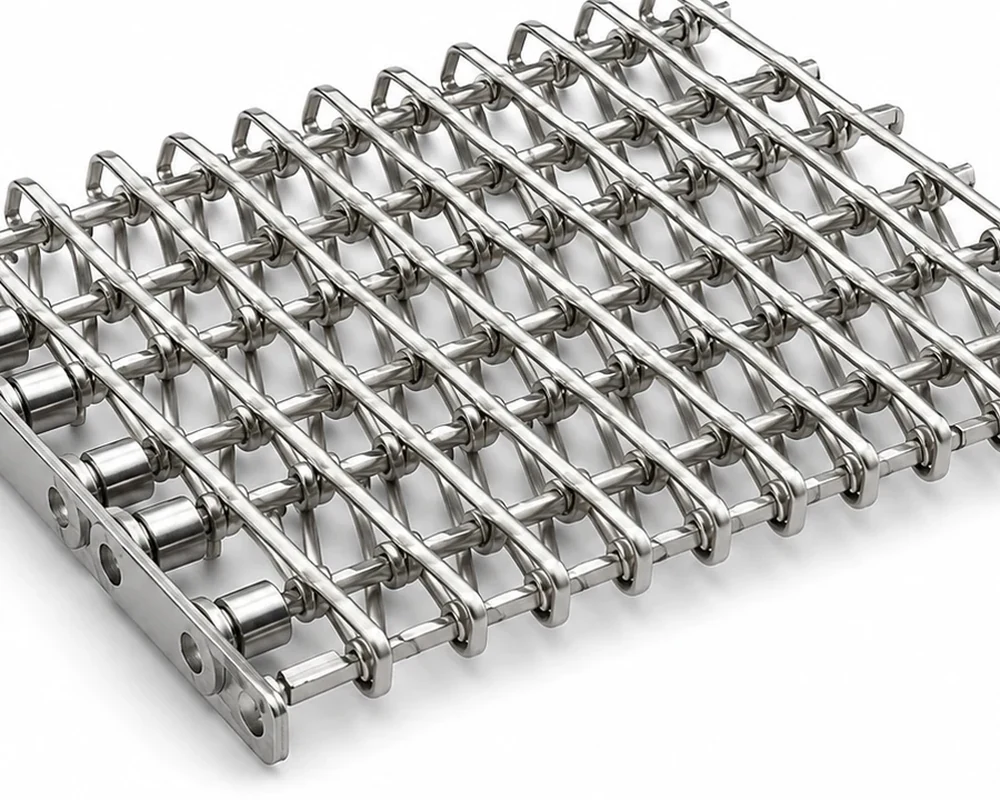

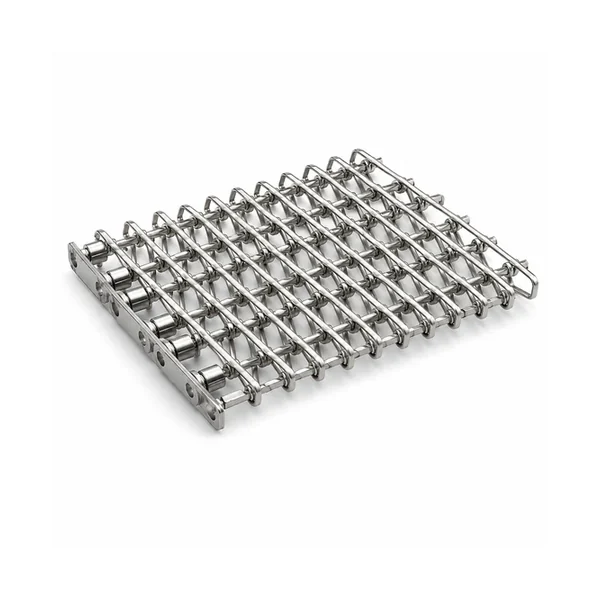

Rod reinforced belts combine spiral wire elements with transverse rods to create a wire conveying surface that can be specified by spiral pitch, rod pitch, rod thickness and rod diameter. The catalogue distinguishes RR and RRW designation styles and publishes representative nominal weights. These values are useful for matching an existing belt, but they should be combined with actual belt width, edge construction, drive arrangement and application duty before a replacement is released. Because the product is open mesh, airflow, drainage and product support also depend on the selected pitch combination.
For buyers comparing alternatives, start with the verified dimensions below and then review the wider Food Conveyor Belts family. Verified dimensions are shown separately from verified catalogue dimensions from application questions that need confirmation on the RFQ.
For final release, keep the approved configuration, measured interface, quantity and application conditions together on the purchase record so receiving inspection and future repeat orders reference the same controlled basis.
Verified dimensions

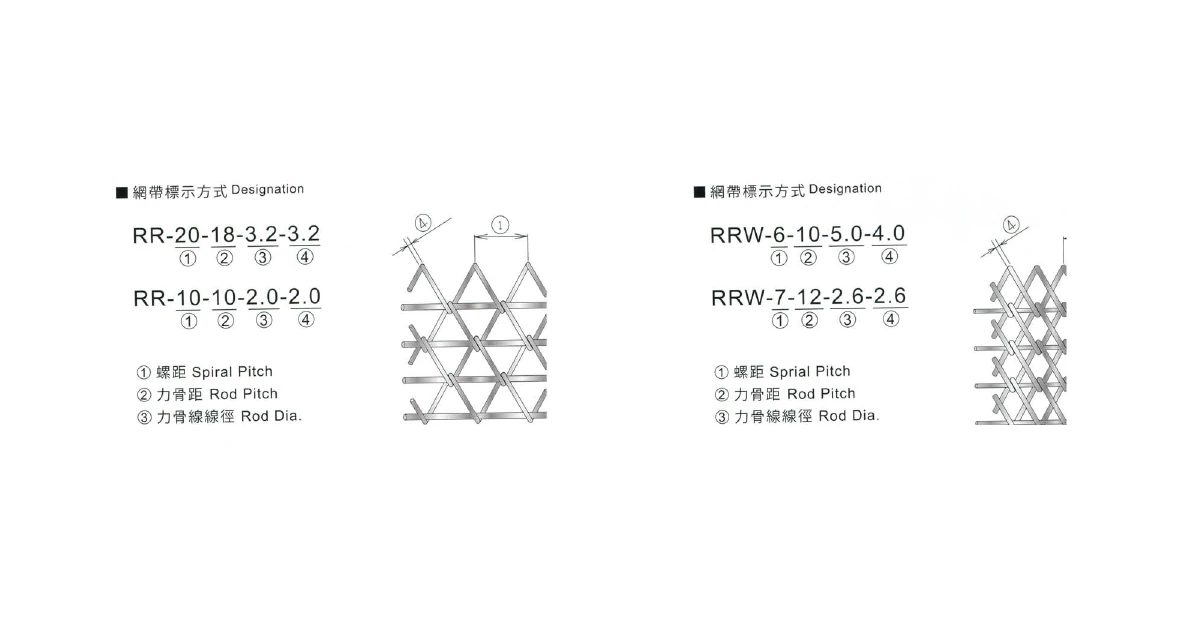

Dimension key: RR/RRW designation: 1 = spiral pitch; 2 = rod pitch; 3 = rod thickness; 4 = rod diameter. The table lists nominal weight per square metre for representative configurations.
| Designation | Weight (kg/m²) |
|---|---|
| RR-27-25-4.0-4.0 | 13.5 |
| RR-25-23-4.0-3.2 | 17.1 |
| RR-20-18-3.2-3.2 | 13.9 |
| RR-16-13-3.2-3.2 | 19.5 |
| RR-13-10-2.6-2.6 | 16.3 |
| RR-12-12-2.0-2.0 | 8.7 |
| RR-10-10-2.0-2.0 | 10.8 |
| RR-12-12-1.6-1.6 | 5.3 |
| RR-8-6-1.6-1.6 | 10.3 |
| RRW-12.5-25-5.0-4.0 | 31.7 |
| RRW-4-12-2.6-2.6 | 39.1 |
How to specify the right configuration

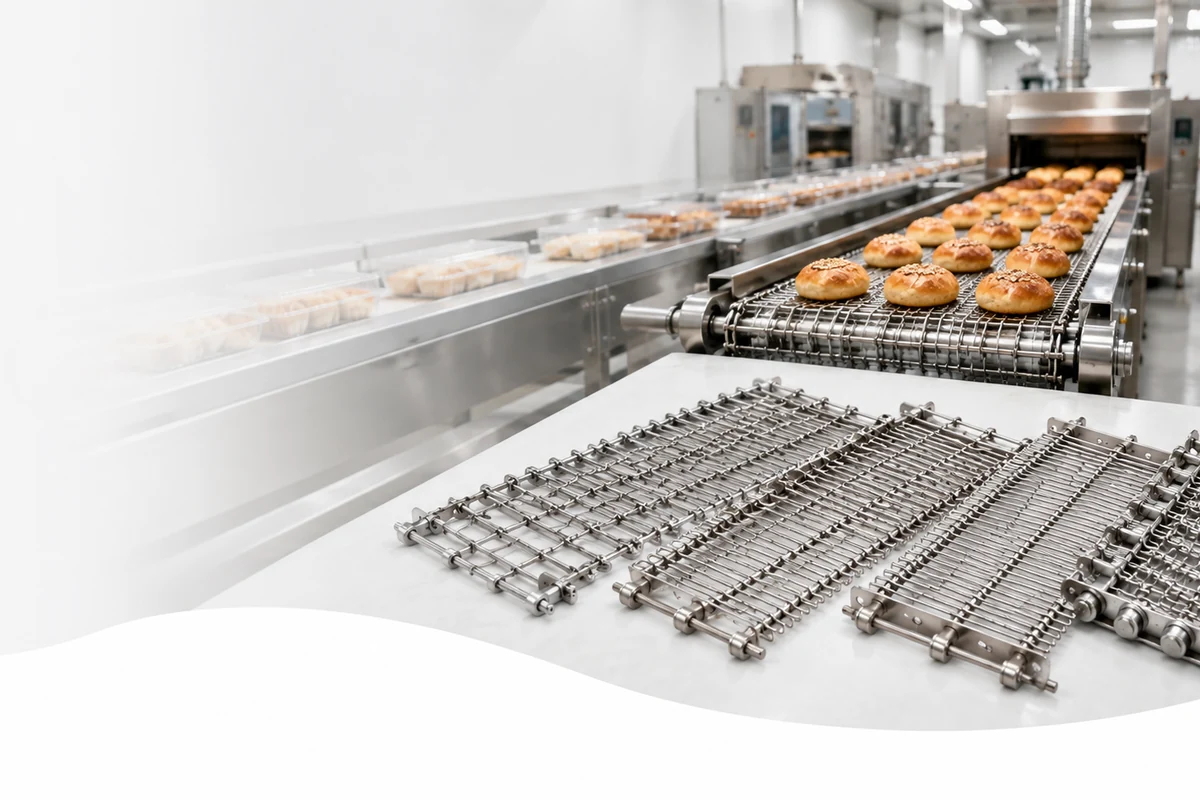

Start with the four designation parameters, then define overall belt width, useful carrying width, edge style and any side or product guides. For food processing, also describe the product footprint: a belt that supports a tray or large baked item may not support small loose pieces with the same spacing. If the belt passes through heating, cooling, washing or drying equipment, state the temperature cycle and cleaning chemistry. The source table provides nominal weight, not load capacity; required conveying load and support spacing must therefore be evaluated separately.
Include conveyor speed, total loop length, product mass and spacing, start/stop pattern, curves or inclines, temperature zones, sanitation method and the existing drive or sprocket arrangement. These operating details are intentionally requested rather than converted into unsupported catalogue ratings.
Design around the machine interface
Before finalizing a replacement, compare the component with the complete conveyor path. Small differences in guides, transfer height or sprocket engagement can determine whether an otherwise similar chain or belt runs freely.
The visible conveying element is only one part of the system. Guide rails, sprockets, support tracks, transfer plates, tensioning and sanitation access all influence service life and product handling. When replacing an existing conveyor component, send the mating-interface dimensions instead of asking for a visual match alone.
For a broader project checklist, see our food conveyor chain selection guide.
Installation and commissioning checks
During installation, align support rails so the reinforced rods are not forced into a skewed path. Check the drive interface across the full belt width and verify that the belt tracks without rubbing a frame edge. Run empty first, then with representative product distribution. An open wire belt can look straight at the center while one edge is accumulating pitch error, so inspect both edges and the cross-rods during commissioning.
Keep geometry stable through sanitation and wear
Keep product residue from packing around rod intersections and edge loops. Cleaning should preserve wire shape and avoid tools that nick or bend the mesh. Inspect for localized wire polishing, cracked welds where present, uneven cross-rod movement and edge distortion. If a belt has been repeatedly shortened after damage, measure its current width and pitch again rather than relying on the original purchase record.
Inspection should compare a repeatable reference length rather than judging one joint by eye. Record the location of abnormal wear so it can be related to a specific guide, transfer or sprocket.
What to send for an accurate quotation
- Model or complete designation, if known.
- Required quantity and whether the request is sample, replacement or production supply.
- Measured pitch, key widths/diameters, attachment or mesh geometry and overall belt/chain width.
- Clear top, side, end and drive-interface photographs; include a scale reference.
- Operating speed, product/load description, temperature zones, cleaning method and environmental exposure.
- Sprocket or mating-component details and any drawing revision used by the machine builder.
Use the RFQ contact page to organize the information before submitting it through the global enquiry form in the footer.
Common engineering questions
What do the RR/RRW numbers mean?
The catalogue identifies the four designation positions as spiral pitch, rod pitch, rod thickness and rod diameter.
Does the catalogue weight equal load capacity?
No. It is nominal belt weight per square metre. Conveying load depends on the complete belt, supports, drive and application.
What dimensions are needed for a replacement?
Provide designation, belt width, edge style, drive interface, overall length or loop length and photographs of the installed belt.
Can the belt be used for food cooling?
Open wire construction is commonly selected where airflow or drainage is needed, but suitability must be checked against product support, temperature and sanitation requirements.
What should be checked at the edges?
Look for rubbing, stretched loops, bent rods and unequal tracking because edge damage often develops before failure is obvious in the center.
A practical way to avoid a visually similar but mechanically wrong replacement
A replacement can match pitch and still fail because the roller, inner width, attachment height, top-plate envelope or cross-machine interface is different. Build a compact measurement sheet before contacting suppliers. If the old component is worn, take measurements from several less-damaged areas and note which values are estimated. Never silently round a measured value to a familiar nominal size; keep the measured value and the proposed nominal value as separate fields until the match is confirmed.
The specification table above is catalogue evidence for the listed model or configuration. Conveyor speed, support spacing, curve radius, product temperature and cleaning chemistry belong to the machine application and must be confirmed for the project. Keeping these two data sets separate prevents a common procurement error: treating a catalogue geometry value as a performance guarantee for a different conveyor layout.
Before production quantity is released, compare the proposed chain or belt with the sprocket, guide and transfer geometry. A marked-up drawing or a first-article sample is more useful than a product photo when the machine has special guards, side rails or attachments. The goal is an interface that can be inspected objectively during incoming inspection and commissioning.
Keep Rod Reinforced Conveyor Belt traceable from RFQ to incoming inspection
Before placing a production order, convert the agreed configuration into a short acceptance sheet. Put the exact model or designation at the top, followed by the dimensions that control fit on the machine. Attach the approved drawing or marked reference image and identify any dimension that was taken from a worn sample rather than a controlled source. This distinction is important because a supplier should not be asked to reproduce wear simply because the old part was the only sample available.
For repeat orders, keep the same stable item reference and note any deliberate revision. If a later machine modification changes a guide, sprocket, support rail or transfer, update the interface record rather than silently changing the chain or belt. This creates a useful history for procurement and maintenance teams and reduces the chance that two visually similar but mechanically different versions are mixed in stores.
Check the machine before blaming the replacement component
A conveyor component can show accelerated wear even when its manufacturing dimensions are correct. Inspect the mating sprocket, guide and transfer surfaces for burrs, hooks, steps, side pressure and localized contamination. Compare left and right sides of the machine and mark any position where the chain or belt changes direction. If the old component has a polished band or bent attachment that repeats at the same location, document that point before the old loop is removed.
After installation, create a controlled low-speed baseline. Listen for repeating noise, watch the same marked joint through the drive and return, and confirm that product transfer is stable before increasing speed. If the machine uses take-up adjustment, record its final position. A short baseline record makes later maintenance more objective because the team can compare current condition with the state immediately after commissioning.
These checks also help quotation quality. When the supplier receives clear evidence about fit, wear location and operating duty, the response can focus on the relevant geometry or process question instead of asking the buyer to choose from a long list of generic options.
