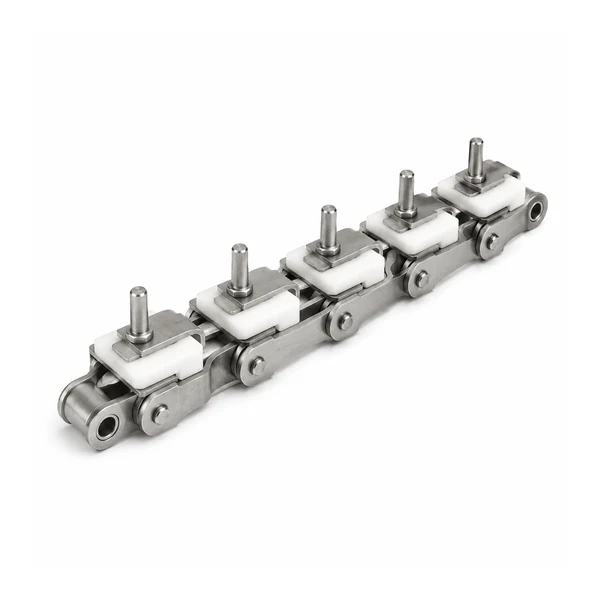

Ice Cream Conveyor Chain
Ice cream conveyor chain family with A, C, AB and CP configurations and verified dimensional options for product carriers and abrasion-block interfaces.

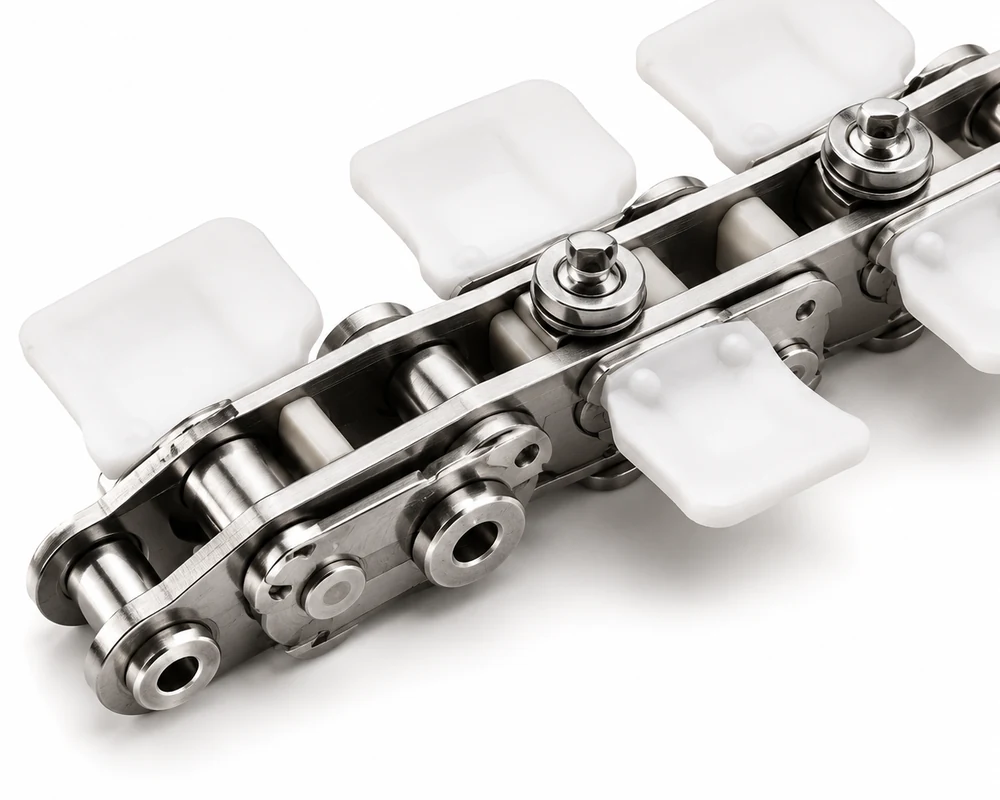

Ice Cream Conveyor Chain: geometry first, application second
The ice cream conveyor chain family uses dedicated attachments and abrasion-block interfaces rather than a single universal chain form. The catalogue shows A, C, AB and CP arrangements with different pitches and interface dimensions. That variety matters because the product carrier, guide surface and indexing arrangement can change from one frozen-dessert machine to another. A replacement inquiry should begin with the exact existing configuration, not only the words ‘ice cream chain’. Where the original chain number is unknown, clear top and side photographs plus pitch, roller diameter and attachment dimensions are the fastest way to narrow the configuration.
For buyers comparing alternatives, start with the verified dimensions below and then review the wider Food Conveyor Chains family. Verified dimensions are shown separately from verified catalogue dimensions from application questions that need confirmation on the RFQ.
For final release, keep the approved configuration, measured interface, quantity and application conditions together on the purchase record so receiving inspection and future repeat orders reference the same controlled basis.
Verified dimensions

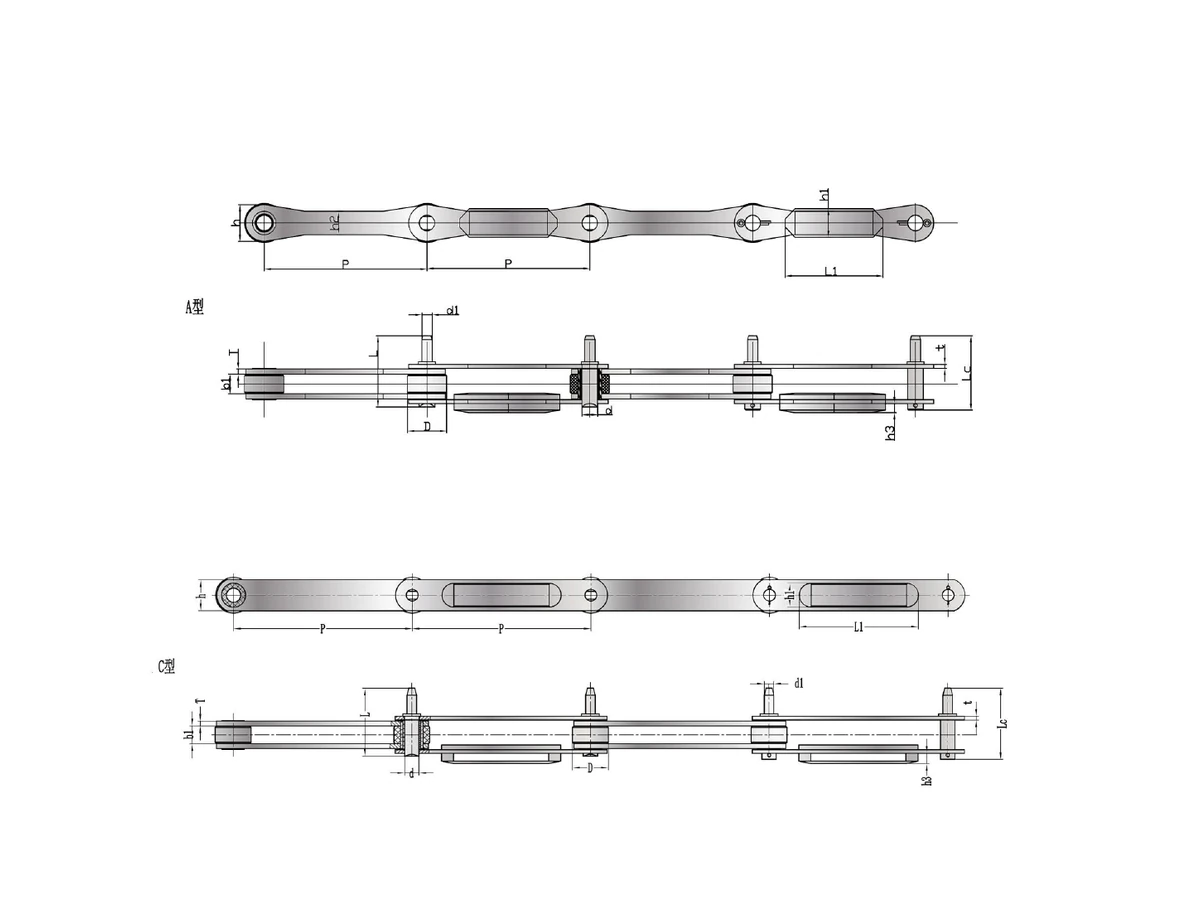

Dimension key: P = pitch; L = pin length; d = pin diameter; D = roller diameter; h = plate height; b1 = inner width; Lc = pin/chain length where listed; T/t = plate thickness notation; abrasion-block dimensions are shown exactly as catalogued.
| Configuration | Pitch P (mm) | Pin Length L (mm) | Pin Diameter d (mm) | Roller Diameter D (mm) | Plate Height h (mm) | Width Between Inner Plates b1 (mm) | Pin Length Lc (mm) | Plate Thickness T/t (mm) | Plastic Abrasion Block Size (mm) | Additional Plate Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| C-SSIC150 | 150.00 | 57.00 | 11.85 | 30.00 | 26.00 | 16.00 | 59.50 | 4/3 | 104×20×8 | — |
| A-SSIC125 | 125.00 | 55.50 | 12.00 | 30.00 | 28.00 | 15.00 | 58.00 | 4/3 | 75×22×7 | 18 |
| AB-SSIC50.8 | 50.80 | 26.50 | 11.55 | 30.00 | 25.80 | 10.00 | 57.80 | 3/3 | 23×23×5 | 13.50 |
| CP-SSIC76.2 | 76.20 | 38.50 | 11.75 | 32.00 | 28.00 | 15.00 | — | 3.00 | 68×65 | 11.50 |
| CP-SSIC101.6 | 101.60 | 38.50 | 11.75 | 32.00 | 28.00 | 15.00 | — | 3.00 | 68×65 | 11.50 |
How to specify the right configuration
Choose the configuration by matching the installed carrier geometry first, then the chain pitch and roller system. Confirm whether the line uses abrasion blocks, extended pins or a dedicated carrier around the joint. Record freezer or cooling-zone conditions, sanitation method, any icing exposure and whether the line indexes or runs continuously. For parallel-chain machines, measure the cross-machine center distance and check whether matched chain lengths are required. Do not mix dimensional rows from different A/C/AB/CP configurations when preparing a replacement specification.
Include conveyor speed, total loop length, product mass and spacing, start/stop pattern, curves or inclines, temperature zones, sanitation method and the existing drive or sprocket arrangement. These operating details are intentionally requested rather than converted into unsupported catalogue ratings.

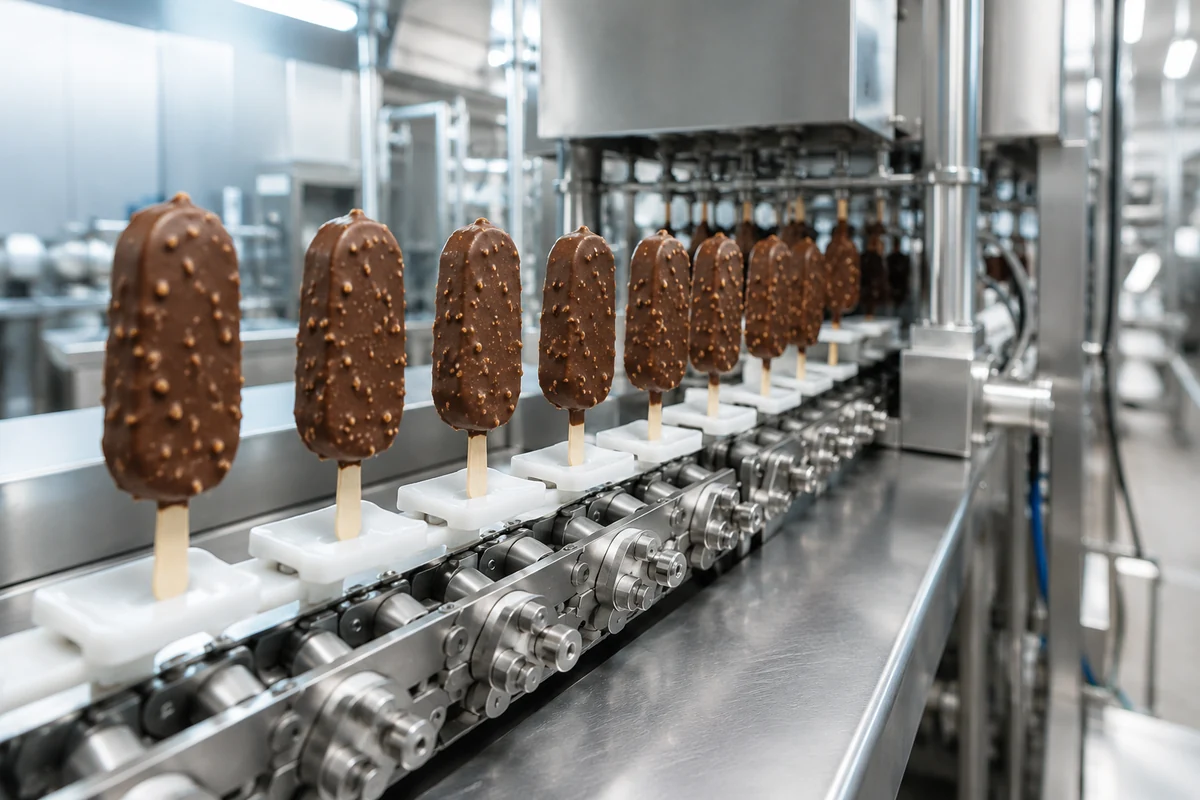

Design around the machine interface
Before finalizing a replacement, compare the component with the complete conveyor path. Small differences in guides, transfer height or sprocket engagement can determine whether an otherwise similar chain or belt runs freely.
The visible conveying element is only one part of the system. Guide rails, sprockets, support tracks, transfer plates, tensioning and sanitation access all influence service life and product handling. When replacing an existing conveyor component, send the mating-interface dimensions instead of asking for a visual match alone.
For a broader project checklist, see our food conveyor chain selection guide.
Installation and commissioning checks
Before connecting the loop, verify that every attachment clears guides and fixed machine parts through a complete hand rotation. Check carrier height and the relationship between the abrasion block and its wear surface. If the chain is used in an indexing machine, test the stop position at low speed before introducing product. A small pitch or attachment mismatch can appear acceptable on a straight run yet create a repeating positioning error at the drive sprocket or transfer point.
Keep geometry stable through sanitation and wear
Frozen dessert lines can combine moisture, sugar residue and cold surfaces. Cleaning plans should preserve attachment alignment and avoid residue accumulation around rollers, pins and abrasion blocks. After sanitation, inspect the blocks for uneven wear and make sure fasteners or attachment interfaces have not loosened. If product buildup changes friction at a sliding block, the drive load and positional repeatability can change even though the chain itself is not visibly damaged.
Inspection should compare a repeatable reference length rather than judging one joint by eye. Record the location of abnormal wear so it can be related to a specific guide, transfer or sprocket.
What to send for an accurate quotation
- Model or complete designation, if known.
- Required quantity and whether the request is sample, replacement or production supply.
- Measured pitch, key widths/diameters, attachment or mesh geometry and overall belt/chain width.
- Clear top, side, end and drive-interface photographs; include a scale reference.
- Operating speed, product/load description, temperature zones, cleaning method and environmental exposure.
- Sprocket or mating-component details and any drawing revision used by the machine builder.
Use the RFQ contact page to organize the information before submitting it through the global enquiry form in the footer.
Common engineering questions
Which ice cream chain configuration should I quote?
Use the existing chain number when available. Otherwise send the A/C/AB/CP-style geometry, pitch, roller diameter, attachment measurements and machine photographs.
Are all listed configurations the same pitch?
No. The source table includes pitches from 50.80 mm to 150.00 mm, so pitch must be measured rather than assumed.
Why are abrasion-block dimensions important?
They define the sliding or carrier interface. A block with the wrong footprint can change guide contact, height and positioning.
Should I provide operating temperature?
Yes. Temperature and icing conditions help review material and clearance suitability even though the catalogue table does not publish a universal operating-temperature rating.
Can different models be combined in one RFQ?
Yes. List each configuration and quantity separately so the quotation can keep model-specific geometry clear.
A practical way to avoid a visually similar but mechanically wrong replacement
A replacement can match pitch and still fail because the roller, inner width, attachment height, top-plate envelope or cross-machine interface is different. Build a compact measurement sheet before contacting suppliers. If the old component is worn, take measurements from several less-damaged areas and note which values are estimated. Never silently round a measured value to a familiar nominal size; keep the measured value and the proposed nominal value as separate fields until the match is confirmed.
The specification table above is catalogue evidence for the listed model or configuration. Conveyor speed, support spacing, curve radius, product temperature and cleaning chemistry belong to the machine application and must be confirmed for the project. Keeping these two data sets separate prevents a common procurement error: treating a catalogue geometry value as a performance guarantee for a different conveyor layout.
Before production quantity is released, compare the proposed chain or belt with the sprocket, guide and transfer geometry. A marked-up drawing or a first-article sample is more useful than a product photo when the machine has special guards, side rails or attachments. The goal is an interface that can be inspected objectively during incoming inspection and commissioning.
Keep Ice Cream Conveyor Chain traceable from RFQ to incoming inspection
Before placing a production order, convert the agreed configuration into a short acceptance sheet. Put the exact model or designation at the top, followed by the dimensions that control fit on the machine. Attach the approved drawing or marked reference image and identify any dimension that was taken from a worn sample rather than a controlled source. This distinction is important because a supplier should not be asked to reproduce wear simply because the old part was the only sample available.
For repeat orders, keep the same stable item reference and note any deliberate revision. If a later machine modification changes a guide, sprocket, support rail or transfer, update the interface record rather than silently changing the chain or belt. This creates a useful history for procurement and maintenance teams and reduces the chance that two visually similar but mechanically different versions are mixed in stores.
Check the machine before blaming the replacement component
A conveyor component can show accelerated wear even when its manufacturing dimensions are correct. Inspect the mating sprocket, guide and transfer surfaces for burrs, hooks, steps, side pressure and localized contamination. Compare left and right sides of the machine and mark any position where the chain or belt changes direction. If the old component has a polished band or bent attachment that repeats at the same location, document that point before the old loop is removed.
After installation, create a controlled low-speed baseline. Listen for repeating noise, watch the same marked joint through the drive and return, and confirm that product transfer is stable before increasing speed. If the machine uses take-up adjustment, record its final position. A short baseline record makes later maintenance more objective because the team can compare current condition with the state immediately after commissioning.
These checks also help quotation quality. When the supplier receives clear evidence about fit, wear location and operating duty, the response can focus on the relevant geometry or process question instead of asking the buyer to choose from a long list of generic options.
